7. Visualization#

Tables are a powerful way of organizing and visualizing data. However, large tables of numbers can be difficult to interpret, no matter how organized they are. Sometimes it is much easier to interpret graphs than numbers.

In this chapter we will develop some of the fundamental graphical methods of data analysis. Our source of data is the Internet Movie Database, an online database that contains information about movies, television shows, video games, and so on. The site Box Office Mojo provides many summaries of IMDB data, some of which we have adapted. We have also used data summaries from The Numbers, a site with a tagline that says it is “where data and the movie business meet.”

Scatter Plots and Line Graphs

The table actors contains data on Hollywood actors, both male and female. The columns are:

Column

Contents

Actor

Name of actor

Total Gross

Total gross domestic box office receipt, in millions of dollars, of all of the actor’s movies

Number of Movies

The number of movies the actor has been in

Average per Movie

Total gross divided by number of movies

#1 Movie

The highest grossing movie the actor has been in

Gross

Gross domestic box office receipt, in millions of dollars, of the actor’s #1 Movie

In the calculation of the gross receipt, the data tabulators did not include movies where an actor had a cameo role or a speaking role that did not involve much screen time.

The table has 50 rows, corresponding to the 50 top grossing actors. The table is already sorted by Total Gross, so it is easy to see that Harrison Ford is the highest grossing actor. At the time when the table was created, his movies had brought in more money at the domestic box office than the movies of any other actor in the table.

actors = Table.read_table(path_data + 'actors.csv')
actors
Actor Total Gross Number of Movies Average per Movie #1 Movie Gross
Harrison Ford 4871.7 41 118.8 Star Wars: The Force Awakens 936.7
Samuel L. Jackson 4772.8 69 69.2 The Avengers 623.4
Morgan Freeman 4468.3 61 73.3 The Dark Knight 534.9
Tom Hanks 4340.8 44 98.7 Toy Story 3 415
Robert Downey, Jr. 3947.3 53 74.5 The Avengers 623.4
Eddie Murphy 3810.4 38 100.3 Shrek 2 441.2
Tom Cruise 3587.2 36 99.6 War of the Worlds 234.3
Johnny Depp 3368.6 45 74.9 Dead Man's Chest 423.3
Michael Caine 3351.5 58 57.8 The Dark Knight 534.9
Scarlett Johansson 3341.2 37 90.3 The Avengers 623.4

... (40 rows omitted)

Terminology. A variable is a formal name for what we have been calling a “feature” or “attribute”, such as ‘number of movies.’ The term variable emphasizes the point that a feature can have different values for different individuals. For example, the numbers of movies that actors have been in vary across all the actors.

Variables that have numerical values and can be measured numerically, such as ‘number of movies’ or ‘average gross receipts per movie’ are called quantitative or numerical variables.

Scatter Plots

A scatter plot displays the relation between two numerical variables. You saw an example of a scatter plot in an early section where we looked at the number of periods and number of characters in two classic novels.

The Table method scatter draws a scatter plot consisting of one point for each row of the table. Its first argument is the label of the column to be plotted on the horizontal axis, and its second argument is the label of the column on the vertical.

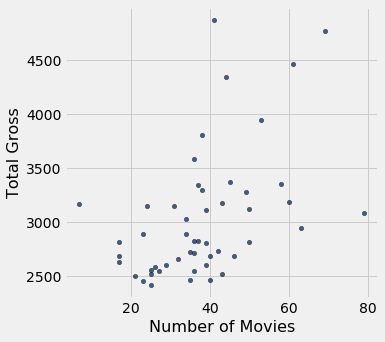

actors.scatter('Number of Movies', 'Total Gross')
../../_images/642d95bf8f41d926ed7050ca3981774b55bf91f3c1b0638b1f56b218b409b61a.png

The plot contains 50 points, one point for each actor in the table. You can see that it slopes upwards, in general. The more movies an actor has been in, the more the total gross of all of those movies – in general.

Formally, we say that the plot shows an association between the variables, and that the association is positive: high values of one variable tend to be associated with high values of the other, and low values of one with low values of the other, in general.

Of course there is some variability. Some actors have high numbers of movies but middling total gross receipts. Others have middling numbers of movies but high receipts. That the association is positive is simply a statement about the broad general trend.

Later in the course we will study how to quantify association. For the moment, we will just think about it qualitatively.

Now that we have explored how the number of movies is related to the total gross receipt, let’s turn our attention to how it is related to the average gross receipt per movie.

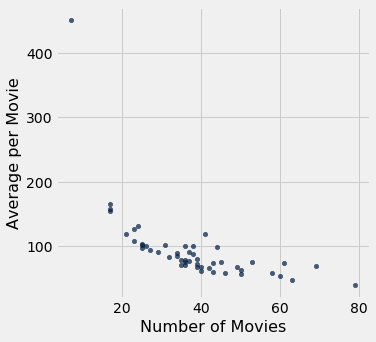

actors.scatter('Number of Movies', 'Average per Movie')
../../_images/d9080111b82b82d58615ce131f5b8cd7d06a32b0198e82e1df60af58c2228ad1.png

This is a markedly different picture and shows a negative association. In general, the more movies an actor has been in, the less the average receipt per movie.

Also, one of the points is quite high and off to the left of the plot. It corresponds to one actor who has a low number of movies and high average per movie. This point is an outlier. It lies outside the general range of the data. Indeed, it is quite far from all the other points in the plot.

We will examine the negative association further by looking at points at the right and left ends of the plot.

For the right end, let’s zoom in on the main body of the plot by just looking at the portion that doesn’t have the outlier.

no_outlier = actors.where('Number of Movies', are.above(10))

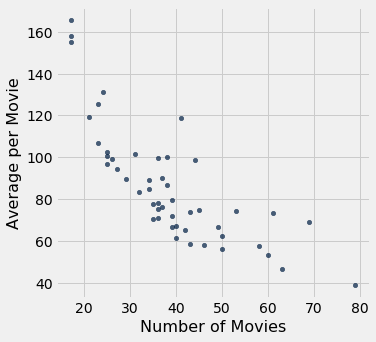

no_outlier.scatter('Number of Movies', 'Average per Movie')
../../_images/006329dd0838a96f6854c12daa07a1c52403b6010ca7a2026373d2b7ca614c3d.png

The negative association is still clearly visible. Let’s identify the actors corresponding to the points that lie on the right hand side of the plot where the number of movies is large:

actors.where('Number of Movies', are.above(60))
Actor Total Gross Number of Movies Average per Movie #1 Movie Gross
Samuel L. Jackson 4772.8 69 69.2 The Avengers 623.4
Morgan Freeman 4468.3 61 73.3 The Dark Knight 534.9
Robert DeNiro 3081.3 79 39 Meet the Fockers 279.3
Liam Neeson 2942.7 63 46.7 The Phantom Menace 474.5

The great actor Robert DeNiro has the highest number of movies and the lowest average receipt per movie. Other fine actors are at points that are not very far away, but DeNiro’s is at the extreme end.

To understand the negative association, note that the more movies an actor is in, the more variable those movies might be, in terms of style, genre, and box office draw. For example, an actor might be in some high-grossing action movies or comedies (such as Meet the Fockers), and also in a large number of smaller films that may be excellent but don’t draw large crowds. Thus the actor’s value of average receipts per movie might be relatively low.

To approach this argument from a different direction, let us now take a look at the outlier.

actors.where('Number of Movies', are.below(10))
Actor Total Gross Number of Movies Average per Movie #1 Movie Gross
Anthony Daniels 3162.9 7 451.8 Star Wars: The Force Awakens 936.7

As an actor, Anthony Daniels might not have the stature of Robert DeNiro. But his 7 movies had an astonishingly high average receipt of nearly \(452\) million dollars per movie.

What were these movies? You might know about the droid C-3PO in Star Wars:

C-3PO

That’s Anthony Daniels inside the metallic suit. He plays C-3PO.

Mr. Daniels’ entire filmography (apart from cameos) consists of movies in the high-grossing Star Wars franchise. That explains both his high average receipt and his low number of movies.

Variables such as genre and production budget have an effect on the association between the number of movies and the average receipt per movie. This example is a reminder that studying the association between two variables often involves understanding other related variables as well.

Line Plots

Line plots, sometimes known as line graphs, are among the most common visualizations. They are often used to study chronological trends and patterns.

The table movies_by_year contains data on movies produced by U.S. studios in each of the years 1980 through 2015. The columns are:

Column

Content

Year

Year

Total Gross

Total domestic box office gross, in millions of dollars, of all movies released

Number of Movies

Number of movies released

#1 Movie

Highest grossing movie

movies_by_year = Table.read_table(path_data + 'movies_by_year.csv')
movies_by_year
Year Total Gross Number of Movies #1 Movie
2015 11128.5 702 Star Wars: The Force Awakens
2014 10360.8 702 American Sniper
2013 10923.6 688 Catching Fire
2012 10837.4 667 The Avengers
2011 10174.3 602 Harry Potter / Deathly Hallows (P2)
2010 10565.6 536 Toy Story 3
2009 10595.5 521 Avatar
2008 9630.7 608 The Dark Knight
2007 9663.8 631 Spider-Man 3
2006 9209.5 608 Dead Man's Chest

... (26 rows omitted)

The Table method plot produces a line plot. Its two arguments are the same as those for scatter: first the column on the horizontal axis, then the column on the vertical. Here is a line plot of the number of movies released each year over the years 1980 through 2015.

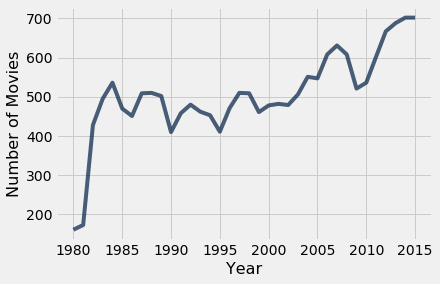

movies_by_year.plot('Year', 'Number of Movies')
../../_images/b1392b81437133e2bbff394c31ba08e179cddb5f77e85a23bf73ee2c1bd34c61.png

The graph rises sharply and then has a gentle upwards trend though the numbers vary noticeably from year to year. The sharp rise in the early 1980’s is due in part to studios returning to the forefront of movie production after some years of filmmaker driven movies in the 1970’s.

Our focus will be on more recent years. In keeping with the theme of movies, the table of rows corresponding to the years 2000 through 2015 have been assigned to the name century_21.

century_21 = movies_by_year.where('Year', are.above(1999))

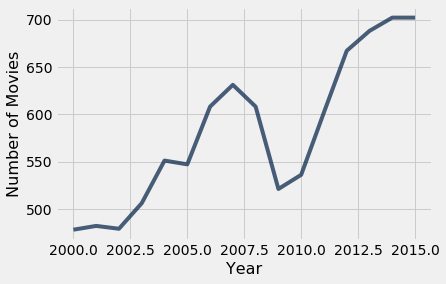

century_21.plot('Year', 'Number of Movies')
../../_images/e35c9e60b4efe4045b5575b2ae1e8e3e8c449d98b52332194fcd0690e03a1edb.png

The global financial crisis of 2008 has a visible effect – in 2009 there is a sharp drop in the number of movies released.

The dollar figures, however, didn’t suffer much.

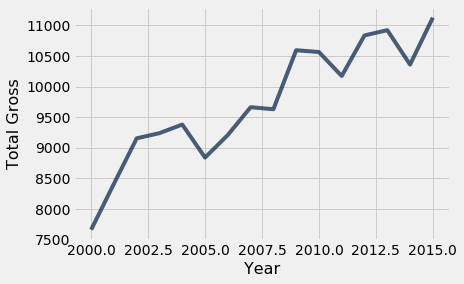

century_21.plot('Year', 'Total Gross')
../../_images/e570786bb71db56f90bb5070fb7fa0531f64bfee24bf9aa7ba04345df49faa3a.png

The total domestic gross receipt was higher in 2009 than in 2008, even though there was a financial crisis and a much smaller number of movies were released.

One reason for this apparent contradiction is that people tend to go to the movies when there is a recession. “In Downturn, Americans Flock to the Movies,” said the New York Times in February 2009. The article quotes Martin Kaplan of the University of Southern California saying, “People want to forget their troubles, and they want to be with other people.” When holidays and expensive treats are unaffordable, movies provide welcome entertainment and relief.

In 2009, another reason for high box office receipts was the movie Avatar and its 3D release. Not only was Avatar the #1 movie of 2009, it is also by some calculations one of the highest grossing movies of all time, as we will see later.

century_21.where('Year', are.equal_to(2009))
Year Total Gross Number of Movies #1 Movie
2009 10595.5 521 Avatar
