7.3. Overlaid Graphs#

In this chapter, we have learned how to visualize data by drawing graphs. A common use of such visualizations is to compare two datasets. In this section, we will see how to overlay plots, that is, draw them in a single graphic on a common pair of axes.

For the overlay to make sense, the graphs that are being overlaid must represent the same variables and be measured in the same units.

To draw overlaid graphs, the methods scatter, plot, and barh can all be called in the same way. For scatter and plot, one column must serve as the common horizontal axis for all the overlaid graphs. For barh, one column must serve as the common axis which is the set of categories. The general call looks like:

name_of_table.method(column_label_of_common_axis, array_of_labels_of_variables_to_plot)

More commonly, we will first select only the columns needed for our graph, and then call the method by just specifying the variable on the common axis:

name_of_table.method(column_label_of_common_axis)

7.3.1. Overlaid Scatter Plots#

The table sons_heights is part of a historical data set on the heights of parents and their children. Specifically, the population consists of 179 men who were the first-born in their families. The data are their own heights and the heights of their parents. All heights were measured in inches.

sons_heights = Table.read_table(path_data + 'sons_heights.csv')
sons_heights
father mother son
78.5 67 73.2
75.5 66.5 73.5
75 64 71
75 64 70.5
75 58.5 72
74 68 76.5
74 62 74
73 67 71
73 67 68
73 66.5 71

... (169 rows omitted)

The scatter method allows us to visualize how the sons’ heights are related to the heights of both their parents. In the graph, the sons’ heights will form the common horizontal axis.

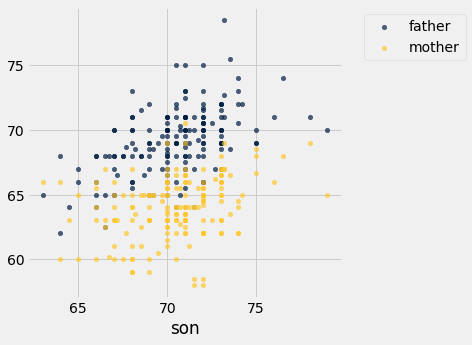

sons_heights.scatter('son')
../../../_images/f6def0b40caff8bc0abf1594e44084f5429df6c07c041b37a361cb9514ab2a89.png

Notice how we only specified the variable (sons’ heights) on the common horizontal axis. Python drew two scatter plots: one each for the relation between this variable and the other two.

Each point represents a row of the table, that is, a “father, mother, son” trio. For all points, the horizontal axis represents the son’s height. In the blue points, the vertical axis represents the father’s height. In the gold points, the vertical axis represents the mother’s heights.

Both the gold and the blue scatter plots slope upwards and show a positive association between the sons’ heights and the heights of both their parents. The blue (fathers) plot is in general higher than the gold, because the fathers were in general taller than the mothers.

7.3.2. Overlaid Line Plots#

Our next example involves data on children of more recent times. We will return to the Census data table us_pop, created below again for reference. From this table, we will extract the counts of all children in each of the age categories 0 through 18 years.

# Read the full Census table
data = 'http://www2.census.gov/programs-surveys/popest/technical-documentation/file-layouts/2010-2019/nc-est2019-agesex-res.csv'
full_census_table = Table.read_table(data)

# Select columns from the full table and relabel some of them
partial_census_table = full_census_table.select('SEX', 'AGE', 'POPESTIMATE2014', 'POPESTIMATE2019')
us_pop = partial_census_table.relabeled('POPESTIMATE2014', '2014').relabeled('POPESTIMATE2019', '2019')

# Access the rows corresponding to all children, ages 0-18
children = us_pop.where('SEX', are.equal_to(0)).where('AGE', are.below(19)).drop('SEX')
children.show()
AGE 2014 2019
0 3954787 3783052
1 3948891 3829599
2 3958711 3922044
3 4005928 3998665
4 4004032 4043323
5 4004576 4028281
6 4133372 4017227
7 4152666 4022319
8 4118349 4066194
9 4106068 4061874
10 4114558 4060940
11 4084457 4189261
12 4067187 4208387
13 4168095 4175221
14 4231353 4164459
15 4162828 4175459
16 4165925 4150420
17 4181940 4142425
18 4221344 4255827

We can now draw two overlaid line plots, showing the numbers of children in the different age groups for each of the years 2014 and 2019. The call is analogous to the scatter call in the previous example.

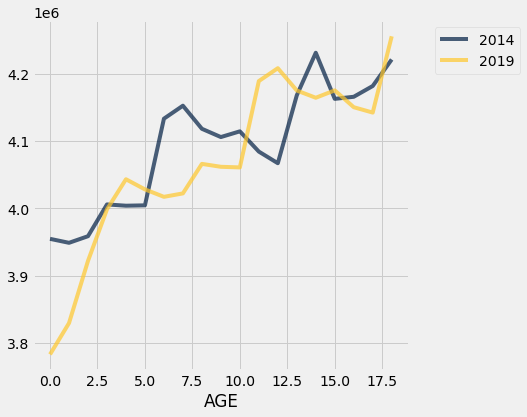

children.plot('AGE')
../../../_images/0e3ebf747be127765e6c366987d16f9e44315e23b52c83d1defc80bee90295cf.png

Though the horizontal axis labels include some half-integers, it’s important to remember that we only have data at ages 0, 1, 2, and so on. The line plots “join the dots” in between.

The two graphs cross each other in a few places. For example, there were more 6-year-olds in 2014 than in 2019, and there were more 12-year-olds in 2019 than in 2014.

Of course, the 12-year-olds in 2019 mostly consist of the children who were 7-year-olds in 2014. To see this on the plots, compare the gold graph at AGE 12 and the blue graph at AGE 7. You will notice that the gold graph (2019) looks very much like the blue graph (2014) slid over to the right by 5 years. The slide is accompanied by a slight rise due to the net effect of children who entered the country between 2014 and 2019 outnumbering those who left. Fortunately at these ages there is not much loss of life.

7.3.3. Bar Charts#

The Kaiser Family Foundation has complied Census data on the distribution of race and ethnicity in the U.S. The Foundation’s website provides compilations of data for the entire U.S. population in 2019, as well as for U.S. children who were younger than 18 years old that year.

The table usa_ca is adapted from their data for the United States and California. The columns represent everyone in the U.S.A., everyone in California, children in the U.S.A., and children in California.

The body of the table contains percents in the different categories. Each column shows the distribution of the Ethnicity/Race variable in the group of people corresponding to that column. So in each column, the entries add up to 100. The API category consists of Asians and Pacific Islanders including Native Hawaiians. The Other category includes Native Americans, Alaskan natives, and people who identify with multiple races.

usa_ca = Table.read_table(path_data + 'usa_ca_2019.csv')
usa_ca
Ethnicity/Race USA All CA All USA Children CA Children
API 5.8 15.1 4.9 11.5
Black 12.2 5.3 13.4 4.9
Hispanic 18.5 39.5 25.6 52.1
White 60.1 36.4 50 25.5
Other 3.4 3.7 6.1 6

It is natural to want to compare these distributions. It makes sense to compare the columns directly, because all the entries are percents and are therefore on the same scale.

The method barh allows us to visualize the comparisons by drawing multiple bar charts on the same axes. The call is analogous to those for scatter and plot: we have to specify the common axis of categories.

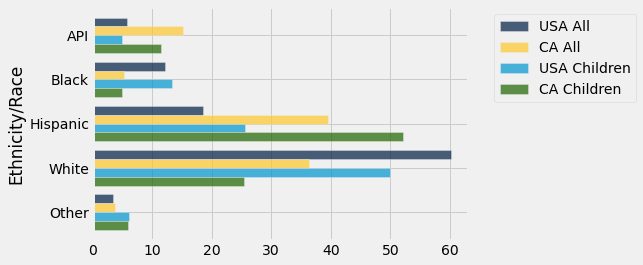

usa_ca.barh('Ethnicity/Race')
../../../_images/077a8c4cda64f0c85c8d4c53c635968ae1d98ea3ee49184579b044a199d34fe0.png

While drawing the overlaid bar charts is straightforward, there is a bit too much information on this graph for us to be able to sort out similarities and differences between populations. It is much easier to compare the populations one pair at a time.

Let’s start by comparing the entire populations of the U.S.A. and California.

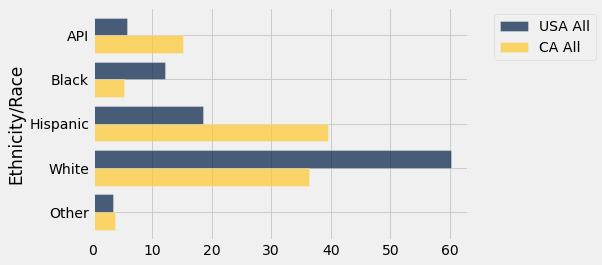

usa_ca.select('Ethnicity/Race', 'USA All', 'CA All').barh('Ethnicity/Race')
../../../_images/7c9a5e2b2099b6202ce5e5a5b57332d17d7740fe41fc9c3b56a056ae1dd513e4.png

The two distributions are quite different. California has higher percents in the API and Hispanic categories, and correspondingly lower percents in theBlack and White categories. The percents in the Other category are quite similar in the two populations. The differences are largely due to California’s geographical location and patterns of immigration and migration, both historically and in more recent decades.

As you can see from the graph, almost 40% of the Californian population in 2019 was Hispanic. A comparison with the population of children in the state indicates that the Hispanic proportion is likely to be greater in future years. Among Californian children in 2019, more than 50% were in the Hispanic category.

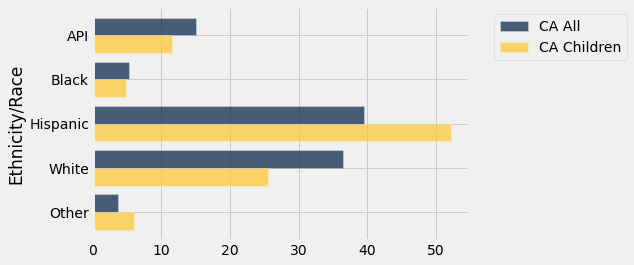

usa_ca.select('Ethnicity/Race', 'CA All', 'CA Children').barh('Ethnicity/Race')
../../../_images/f2521f98162d46a490df257db8468e50e96d7ef2668c5e3ae8a65e773d543c53.png

More complex data sets naturally give rise to varied and interesting visualizations, including overlaid graphs of different kinds. To analyze such data, it helps to have some more skills in data manipulation, so that we can get the data into a form that allows us to use methods like those in this section. In the next chapter we will develop some of these skills.
