17.3. Rows of Tables

Now that we have a qualitative understanding of nearest neighbor classification, it’s time to implement our classifier.

Until this chapter, we have worked mostly with single columns of tables. But now we have to see whether one individual is “close” to another. Data for individuals are contained in rows of tables.

So let’s start by taking a closer look at rows.

Here is the original table ckd containing data on patients who were tested for chronic kidney disease.

ckd = Table.read_table(path_data + 'ckd.csv').relabeled('Blood Glucose Random', 'Glucose')

The data corresponding to the first patient is in row 0 of the table, consistent with Python’s indexing system. The Table method row accesses the row by taking the index of the row as its argument:

ckd.row(0)

Row(Age=48, Blood Pressure=70, Specific Gravity=1.005, Albumin=4, Sugar=0, Red Blood Cells='normal', Pus Cell='abnormal', Pus Cell clumps='present', Bacteria='notpresent', Glucose=117, Blood Urea=56, Serum Creatinine=3.8, Sodium=111, Potassium=2.5, Hemoglobin=11.2, Packed Cell Volume=32, White Blood Cell Count=6700, Red Blood Cell Count=3.9, Hypertension='yes', Diabetes Mellitus='no', Coronary Artery Disease='no', Appetite='poor', Pedal Edema='yes', Anemia='yes', Class=1)

Rows have their very own data type: they are row objects. Notice how the display shows not only the values in the row but also the labels of the corresponding columns.

Rows are in general not arrays, as their elements can be of different types. For example, some of the elements of the row above are strings (like 'abnormal') and some are numerical. So the row can’t be converted into an array.

However, rows share some characteristics with arrays. You can use item to access a particular element of a row. For example, to access the Albumin level of Patient 0, we can look at the labels in the printout of the row above to find that it’s item 3:

ckd.row(0).item(3)

4

17.3.1. Converting Rows to Arrays (When Possible)

Rows whose elements are all numerical (or all strings) can be converted to arrays. Converting a row to an array gives us access to arithmetic operations and other nice NumPy functions, so it is often useful.

Recall that in the previous section we tried to classify the patients as ‘CKD’ or ‘not CKD’, based on two attributes Hemoglobin and Glucose, both measured in standard units.

ckd = Table().with_columns(
    'Hemoglobin', standard_units(ckd.column('Hemoglobin')),
    'Glucose', standard_units(ckd.column('Glucose')),
    'Class', ckd.column('Class')
)

color_table = Table().with_columns(
    'Class', make_array(1, 0),
    'Color', make_array('darkblue', 'gold')
)
ckd = ckd.join('Class', color_table)
ckd

Class	Hemoglobin	Glucose	Color
0	0.456884	0.133751	gold
0	1.153	-0.947597	gold
0	0.770138	-0.762223	gold
0	0.596108	-0.190654	gold
0	-0.239236	-0.49961	gold
0	-0.0304002	-0.159758	gold
0	0.282854	-0.00527964	gold
0	0.108824	-0.623193	gold
0	0.0740178	-0.515058	gold
0	0.83975	-0.422371	gold

... (148 rows omitted)

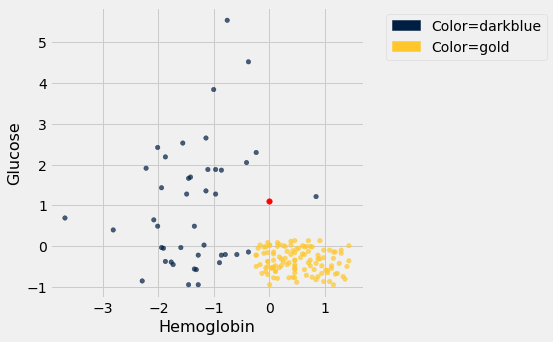

Here is a scatter plot of the two attributes, along with a red point corresponding to Alice, a new patient. Her value of hemoglobin is 0 (that is, at the average) and glucose 1.1 (that is, 1.1 SDs above average).

alice = make_array(0, 1.1)
ckd.scatter('Hemoglobin', 'Glucose', group='Color')
plots.scatter(alice.item(0), alice.item(1), color='red', s=30);

To find the distance between Alice’s point and any of the other points, we only need the values of the attributes:

ckd_attributes = ckd.select('Hemoglobin', 'Glucose')

ckd_attributes

Hemoglobin	Glucose
0.456884	0.133751
1.153	-0.947597
0.770138	-0.762223
0.596108	-0.190654
-0.239236	-0.49961
-0.0304002	-0.159758
0.282854	-0.00527964
0.108824	-0.623193
0.0740178	-0.515058
0.83975	-0.422371

... (148 rows omitted)

Each row consists of the coordinates of one point in our training sample. Because the rows now consist only of numerical values, it is possible to convert them to arrays. For this, we use the function np.array, which converts any kind of sequential object, like a row, to an array. (Our old friend make_array is for creating arrays, not for converting other kinds of sequences to arrays.)

ckd_attributes.row(3)

Row(Hemoglobin=0.5961076648232668, Glucose=-0.19065363034327712)

np.array(ckd_attributes.row(3))

array([ 0.59610766, -0.19065363])

This is very handy because we can now use array operations on the data in each row.

17.3.2. Distance Between Points When There are Two Attributes

The main calculation we need to do is to find the distance between Alice’s point and any other point. For this, the first thing we need is a way to compute the distance between any pair of points.

How do we do this? In 2-dimensional space, it’s pretty easy. If we have a point at coordinates \((x_0,y_0)\) and another at \((x_1,y_1)\), the distance between them is

\[ D = \sqrt{(x_0-x_1)^2 + (y_0-y_1)^2} \]

(Where did this come from? It comes from the Pythogorean theorem: we have a right triangle with side lengths \(x_0-x_1\) and \(y_0-y_1\), and we want to find the length of the hypotenuse.)

In the next section we’ll see that this formula has a straightforward extension when there are more than two attributes. For now, let’s use the formula and array operations to find the distance between Alice and the patient in Row 3.

patient3 = np.array(ckd_attributes.row(3))
alice, patient3

(array([0. , 1.1]), array([ 0.59610766, -0.19065363]))

distance = np.sqrt(np.sum((alice - patient3)**2))
distance

1.421664918881847

We’re going to need the distance between Alice and a bunch of points, so let’s write a function called distance that computes the distance between any pair of points. The function will take two arrays, each containing the \((x, y)\) coordinates of a point. (Remember, those are really the Hemoglobin and Glucose levels of a patient.)

def distance(point1, point2):
    """Returns the Euclidean distance between point1 and point2.

    Each argument is an array containing the coordinates of a point."""
    return np.sqrt(np.sum((point1 - point2)**2))

distance(alice, patient3)

1.421664918881847

We have begun to build our classifier: the distance function is the first building block. Now let’s work on the next piece.

17.3.3. Using apply on an Entire Row

Recall that if you want to apply a function to each element of a column of a table, one way to do that is by the call table_name.apply(function_name, column_label). This evaluates to an array consisting of the values of the function when we call it on each element of the column. So each entry of the array is based on the corresponding row of the table.

If you use apply without specifying a column label, then the entire row is passed to the function. Let’s see how this works on a very small table t containing the information about the first five patients in the training sample.

t = ckd_attributes.take(np.arange(5))
t

Hemoglobin	Glucose
0.456884	0.133751
1.153	-0.947597
0.770138	-0.762223
0.596108	-0.190654
-0.239236	-0.49961

Just as an example, suppose that for each patient we want to know how unusual their most unusual attribute is. Concretely, if a patient’s hemoglobin level is further from the average than her glucose level, we want to know how far it is from the average. If her glucose level is further from the average than her hemoglobin level, we want to know how far that is from the average instead.

That’s the same as taking the maximum of the absolute values of the two quantities. To do this for a particular row, we can convert the row to an array and use array operations.

def max_abs(row):
    return np.max(np.abs(np.array(row)))

max_abs(t.row(4))

0.4996102825918697

And now we can apply max_abs to each row of the table t:

t.apply(max_abs)

array([0.4568837 , 1.15300352, 0.77013762, 0.59610766, 0.49961028])

This way of using apply will help us create the next building block of our classifier.

17.3.4. Alice’s \(k\) Nearest Neighbors

If we want to classify Alice using a k-nearest neighbor classifier, we have to identify her \(k\) nearest neighbors. What are the steps in this process? Suppose \(k = 5\). Then the steps are:

• Step 1. Find the distance between Alice and each point in the training sample.

• Step 2. Sort the data table in increasing order of the distances.

• Step 3. Take the top 5 rows of the sorted table.

Steps 2 and 3 seem straightforward, provided we have the distances. So let’s focus on Step 1.

Here’s Alice:

alice

array([0. , 1.1])

What we need is a function that finds the distance between Alice and another point whose coordinates are contained in a row. The function distance returns the distance between any two points whose coordinates are in arrays. We can use that to define distance_from_alice, which takes a row as its argument and returns the distance between that row and Alice.

def distance_from_alice(row):
    """Returns distance between Alice and a row of the attributes table"""
    return distance(alice, np.array(row))

distance_from_alice(ckd_attributes.row(3))

1.421664918881847

Now we can apply the function distance_from_alice to each row of ckd_attributes, and augment the table ckd with the distances. Step 1 is complete!

distances = ckd_attributes.apply(distance_from_alice)
ckd_with_distances = ckd.with_column('Distance from Alice', distances)

ckd_with_distances

Class	Hemoglobin	Glucose	Color	Distance from Alice
0	0.456884	0.133751	gold	1.06882
0	1.153	-0.947597	gold	2.34991
0	0.770138	-0.762223	gold	2.01519
0	0.596108	-0.190654	gold	1.42166
0	-0.239236	-0.49961	gold	1.6174
0	-0.0304002	-0.159758	gold	1.26012
0	0.282854	-0.00527964	gold	1.1409
0	0.108824	-0.623193	gold	1.72663
0	0.0740178	-0.515058	gold	1.61675
0	0.83975	-0.422371	gold	1.73862

... (148 rows omitted)

For Step 2, let’s sort the table in increasing order of distance:

sorted_by_distance = ckd_with_distances.sort('Distance from Alice')
sorted_by_distance

Class	Hemoglobin	Glucose	Color	Distance from Alice
1	0.83975	1.2151	darkblue	0.847601
1	-0.970162	1.27689	darkblue	0.986156
0	-0.0304002	0.0874074	gold	1.01305
0	0.14363	0.0874074	gold	1.02273
1	-0.413266	2.04928	darkblue	1.03534
0	0.387272	0.118303	gold	1.05532
0	0.456884	0.133751	gold	1.06882
0	0.178436	0.0410639	gold	1.07386
0	0.00440582	0.025616	gold	1.07439
0	-0.169624	0.025616	gold	1.08769

... (148 rows omitted)

Step 3: The top 5 rows correspond to Alice’s 5 nearest neighbors; you can replace 5 by any other positive integer.

alice_5_nearest_neighbors = sorted_by_distance.take(np.arange(5))
alice_5_nearest_neighbors

Class	Hemoglobin	Glucose	Color	Distance from Alice
1	0.83975	1.2151	darkblue	0.847601
1	-0.970162	1.27689	darkblue	0.986156
0	-0.0304002	0.0874074	gold	1.01305
0	0.14363	0.0874074	gold	1.02273
1	-0.413266	2.04928	darkblue	1.03534

Three of Alice’s five nearest neighbors are blue points and two are gold. So a 5-nearest neighbor classifier would classify Alice as blue: it would predict that Alice has chronic kidney disease.

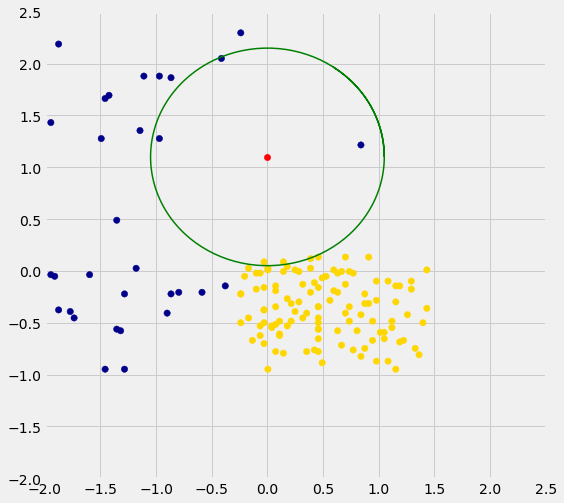

The graph below zooms in on Alice and her five nearest neighbors. The two gold ones just inside the circle directly below the red point. The classifier says Alice is more like the three blue ones around her.

We are well on our way to implementing our k-nearest neighbor classifier. In the next two sections we will put it together and assess its accuracy.
